Understanding Fodar™

Fodar is a method of digital photogrammetry, in which aerial photographs are turned into topographic maps and image mosaics. In this method, a plane is flown back and forth in a regular grid pattern over an area of interest, taking photos on pre-planned intervals. The photos within a flight line and between flight lines overlap, such that each spot on the ground is imaged many times. Because we know where the camera was when each photo was taken, we can triangulate the position of each spot on the ground and thereby determine its position and elevation, described by X, Y, Z coordinates in the real-world. In a typical project, millions of such X,Y,Z points are calculated, creating a "point cloud". This point cloud is then turned into a a digital elevation model (DEM) and an orthophoto. A DEM is simply a digital topographic map, where instead of the contour lines of a paper map, the earth is described essentially by a spreadsheet matrix, where the rows and columns are latitude and longitude and the cell values are elevation. To turn the point cloud into a DEM, all points within a grid cell are averaged and any empty grid cells are assigned a value by interpolating from its neighbors. The orthophoto is essentially the same sort of spreadsheet as the DEM, but with cell values representing color of the terrain rather than its height. The area represented by each cell is called the ground sample distance (GSD), or more commonly as the resolution of the map. The GSD is controlled by flying height, lens, and camera and is something that is determined before the mapping mission begins based on project needs. The DEM and orthophoto can have different GSDs, but usually they are multiples of each other; for example, a 20 cm DEM and a 10 cm orthophoto are common Fodar products. Note that because 10 cm describes the edge of a square, a 10 cm orthophoto has 4 times as many pixels as a 20 cm orthophoto, and when making hundreds of square kilometers at this resolution the file sizes are measured in tens of gigabytes.

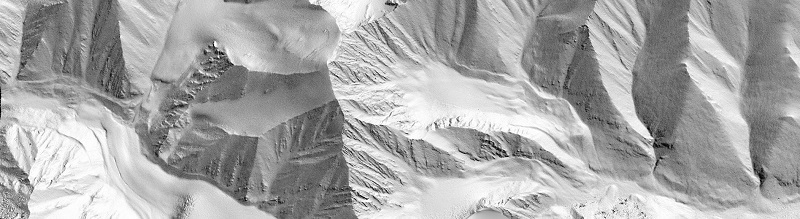

This is a Fodar™ digital elevation model (DEM) of Mt Isto, one of the tallest peaks in Arctic Alaska. This image format is called a 'shaded relief' image, because it uses fake sunshine in the computer to create shadows on the DEM so you can see the relief of the terrain and its details. The image is actual a matrix of values, much like a spreadsheet, in which each cell contains an elevation value.

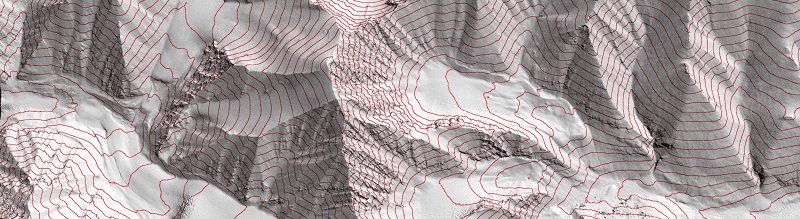

This is the same image, but with elevation contours overlaid. Each contour line represent a line of constant elevation. Most paper topographic maps use contours lines. Contour maps like this are called vector maps whereas DEMs are called raster maps, in GIS language.

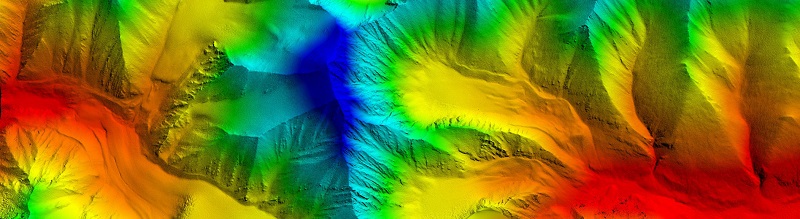

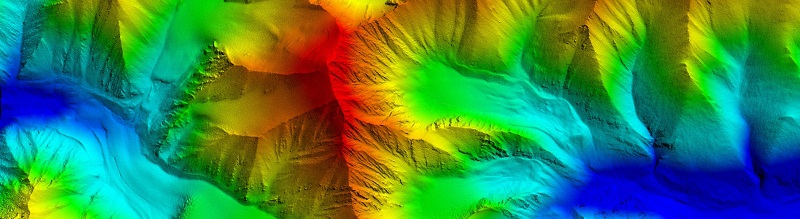

This image format is called a level slice, color slice, or colorized terrain. The colors are arbitrary. Here red means high elevation and blues mean low. It's just another way to present the DEM.

Here is the same DEM, but with a different color scheme. Here blues mean high and reds mean low. DEMs can be colored in a huge variety of color schemes.

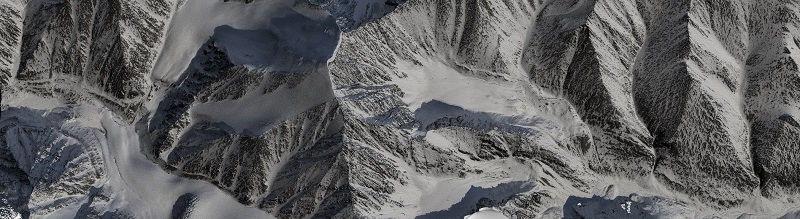

This is the Fodar™ orthoimage corresponding to the DEMs above. Orthorectification is a process in which each pixel of an image is forced to represent the same size area of ground (or ground sample distance, GSD), as if each pixel were imaged from directly overhead. If you have ever taken a picture of a parking lot, you know that that the cars further away appear smaller even though they are the same size physically. Orthorectification corrects for that distortion in scale such that every car would be the same size in the image, at the expense of not seeing the sides of the cars because the orthoimage only provides a top-down view. Orthorectification requires knowing the terrain heights to make the corrections, but the quality of the DEMs used for this varies widely and it is common to hear vertical photos called orthophotos even when no corrections have been made.

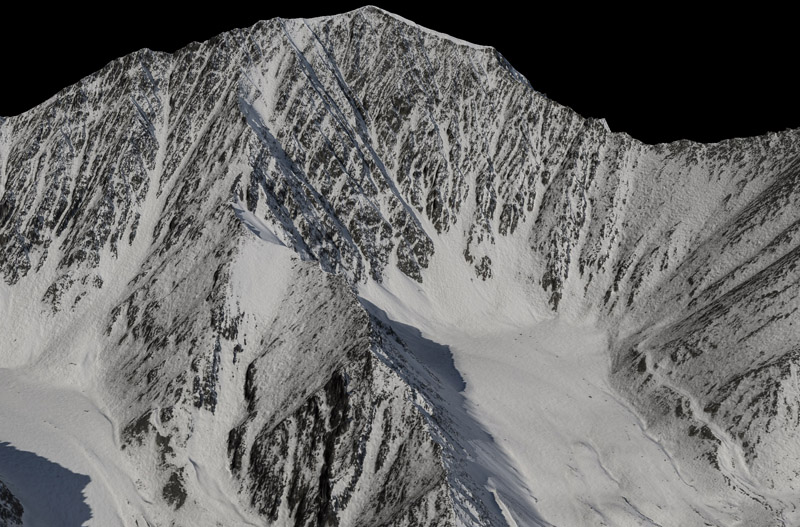

Because the data are digital, we can use visualization software to see it in 3D perspective. Here again is Mt Isto, with the orthoimage overlaid on terrain. Place your mouse over the image to see just the topography in shaded relief format. It is crucially important to understand that Fodar™ creates both a DEM and a perfectly co-registered orthoimage at the same time. Other techniques such as lidar create only a DEM.

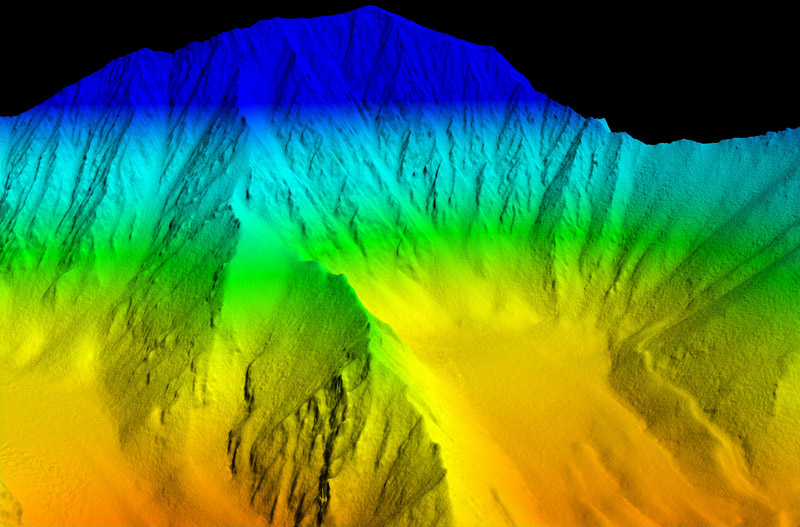

Here is the DEM again as a color slice. Mouse-over to see a different color scheme. Color schemes are arbitrary.

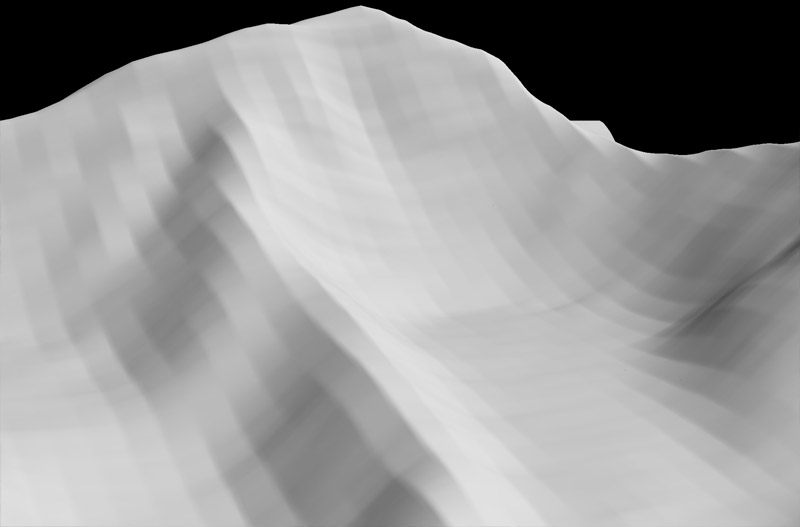

Here is the best DEM from the USGS of Mt Isto. Notice that you can see the individual pixels because the GSD is much coarser, about 50 m rather than the 50 cm Fodar™ DEM you will see when you mouse-over. Whether the increase is resolution is useful to you depends of course on your needs. In this case, not only can we resolve the individual glaciers in the Fodar™ DEM, but we can get a good sense of change over the 60 years between map acquisitions.

We have done extensive testing of the accuracy, precision and noise level of the Fodar™ method of photogrammetry. Without using any ground control, our DEMs are accurate within the realworld to within +/- 100 cm, and usually better than 30 cm, with the vertical offset typically being the largest. A single high-quality ground control point can reduce this accuracy to the precision level of the DEM. The precision of Fodar™, that is its repeatibility, is about +/- 10 cm. That is, if two Fodar maps of the same area are made on the same day, subtracting those two maps should yield a map where all values are less than +/- 10 cm (assuming the realworld surface did not change). Depending on a variety of factors this precision can be reduced to +/- 5 cm and it can be as high as +/- 50 cm; the coarser the GSD, the lower the precision, and there are other contributing factors. The precision errors take the form of small-scale warps and tilts within the DEM, largely due to slight misalignments between adjacent photos when creating the point cloud. The noise level of Fodar™ DEMs is about 1-3 cm. Because the noise level is much lower than the precision level, features as small as several centimeters in height can be resolved even though they are below the level of precision, but their absolute elevations are suspect at the 10 cm level.

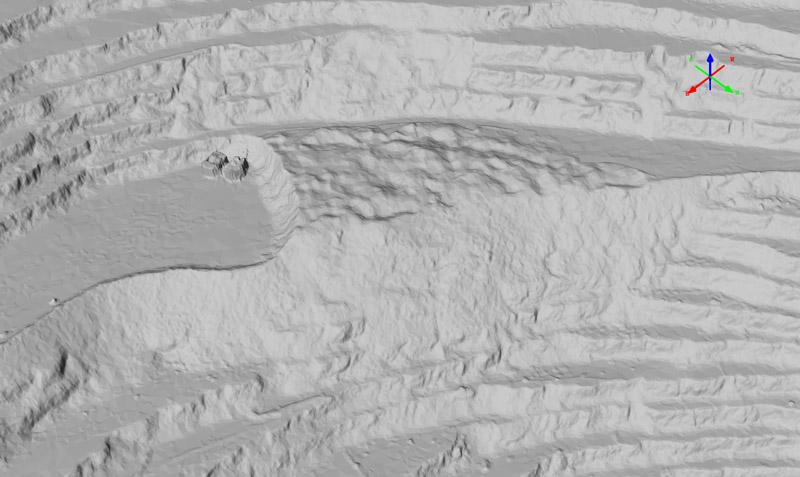

Here is a Fodar™ shaded relief of an open-pit mine site. There is a shovel scooping up recently blasted rock and loading it into a dump truck to the left of center. After a week of work, the recently blasted rock is almost completely removed -- mouse-over to see it. While flickering back and forth between the two images, pay particular attention to the ledges to the right and notice how little motion you see there. Only data precise to the 10 cm level can produce such perfect correspondence between DEMs, and most map-making methods are not nearly that precise.

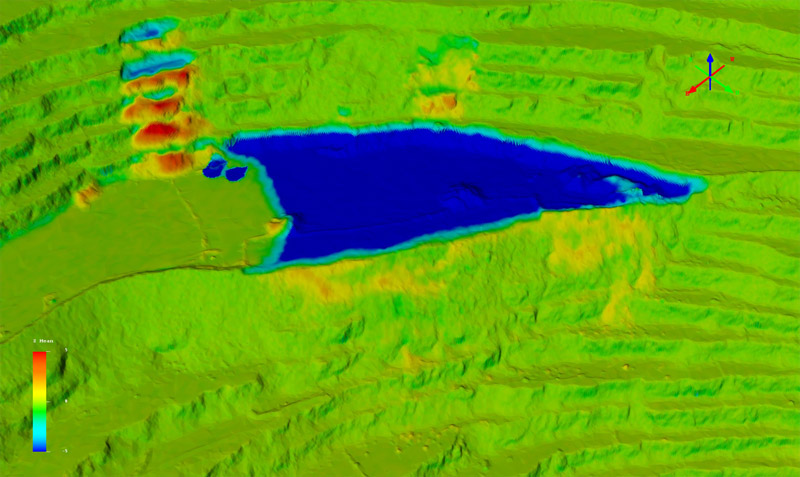

This is a difference image draped over topography. A difference image is created by subtracting (differencing) two DEMs, just as you might subtract two spreadsheets. A new DEM is created, where instead of each spreadsheet cell representing elevation it represents change in elevation. This difference DEM can then be colored like any DEM, where the colors themselves are arbitrary. In this case, green means no change, red means the surface was raised and blue means the surface was lowered. Note how this difference image clearly shows the rock that was removed by the trucks, but also shows several small detachments above and spillage from loading below it. The detatchments show loss at their top (blue or dark green) and gain below (yellows and reds). On the lower levels, individual rocks can be seen in yellow; some of these rocks are the size of a basketball.

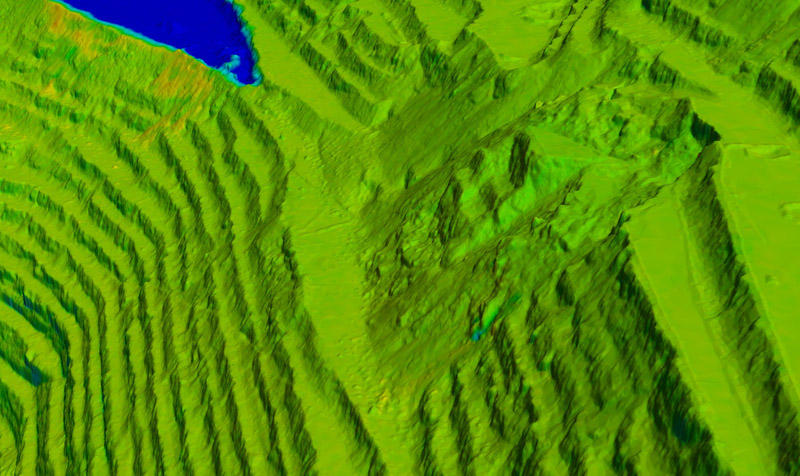

Here is another difference image of the same site, you can see the excavation of the previous images in the upper left. Green represents no change, and no change is apparent here until you look closer by mousing-over. The mouse-over shows two things. First is that the color scheme of a difference image is arbitrary -- this image has the same data, but with colors stretched differently. The first image has blues to reds stretch to +/- 5 m, but the mouse-over image has the same colors stretched to +/- 30 cm, so each change in color represent a much smaller change in topography. At this color resolution, a fault line is revealed to be moving. A few weeks later, this fault released, causing a major landslide here. You can see the results in the Applications section.

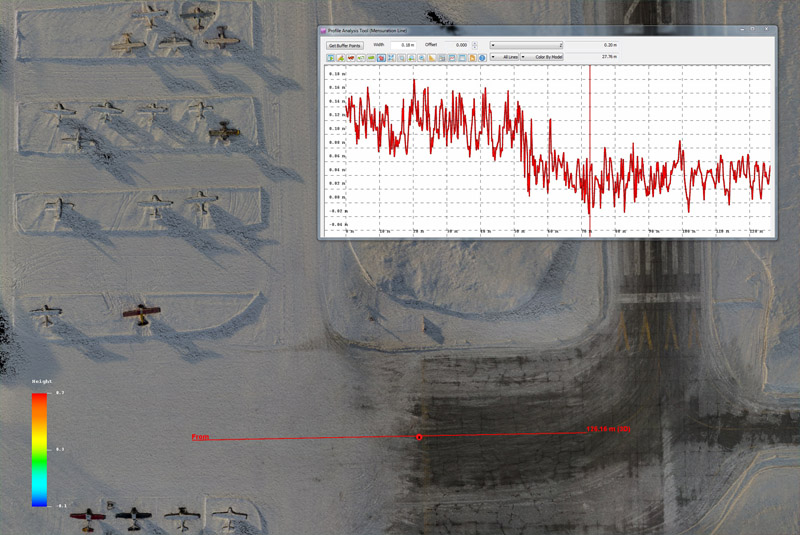

Here is the Fairbanks International Airport in winter. The runway is plowed down to tarmac but the taxi ways are packed so that ski planes can get around. The inset plot shows Fodar snow depth, measured by subtracting a snow-free DEM from this one. The plot has 2 cm vertical ticks, showing a transition from 0 to 10 cm. The random noise (the jitter in the line) is about +/- 2 cm, yet a fairly smooth transition can be seen from 0 to 10 cm, indicating that we are measuring snow depth at the centimeter scale. Mouse-over to see the difference image. Here you will see how the plow trucks try to avoid the parked planes, leaving the snow thicker there.

There are several other types of noise in Fodar DEMs. Photogrammetry works by matching features between photographs. For this to occur accurately, those features must exist and must not be moving. Features in this case are defined by contrast between adjacent pixels, like the edge of a rock or building. If there is no contrast in the photos, there are no features to match, and therefore no point cloud can be resolved there. Thus freshly fallen snow in deep shadows have much fewer features to match than windblown snow in the sun. It is rare that no contrast can be found, but those features may be at a larger spatial scale than the mission intended, so that rather than producing a 10 cm DEM it may only be possible to create a 40 cm DEM there. In the absence of contrast at the intended spatial scale, camera sensor noise can be misinterpreted by the software as contrast defining real features and be used in reconstructing topography, which will lead to increased noise since they are not real features. This occurs rarely, but when it does it is typically on the order of random pits and spikes of 1-5 meter amplitude about the true elevation and is something that can be filtered out through post-processing. Fodar also does not work over liquid water bodies, as in calm conditions there is no contrast and under windy conditions the waves are moving. When the bed of the water body can be seen in the image, the contrast there will be used to reconstruct topography but the resulting elevations will not be accurate because the bending of light rays within the water has not been accounted for. Thus a shallow lake surface will appear to have an elevation, but it should be ignored or masked out in post-processing. If clouds and fog obscure the ground, their tops may be used to create elevation data, so the orthoimage must be examined to determined what is ground and what is cloud top. Because Fodar is a photographic process, part of the Fodar technique is to consider the optimal weather conditions for acquiring the raw data used in processing.

There is no minimum or maximum size of a Fodar™ project. Typical sizes range from 20 to 200 square kilometers. The constraints are typically more about weather (bigger projects take longer), fuel (is enough available where you need it), and budget. Another important consideration regarding areal coverage is the file size that results -- a 10 km by 10 km area at 10 cm GSD will create 70 gigabytes worth of final DEM and orthoimage, not including the raw imagery. Most computers today have a difficult time handling such files. That's why we developed FodarEarth™, so these data can be shared online to almost any Windows computer.

fodarearth image

Compared to lidar, Fodar™ maps are just as accurate and precise, if not more so, plus Fodar™ produces a perfectly co-registered orthophoto whereas lidar only produces a DEM. The importance of an associated orthoimage should not be underestimated when trying to interpret changes to the earth's surface, as the images below demonstrate. Another issue with lidar is that there are many lidar manufacturers and many lidar operators, and thus there is a wide variety in lidar quality. All fodar operators use the same airborne hardware with centralized training, and all processing is done by the same central office, assuring that quality control standards are consistent and high between operators. Perhaps most importantly, Fodar™ is typically 10-100x less expensive than lidar, allowing end-users to not only make one good map of their site, but a time-series of them.

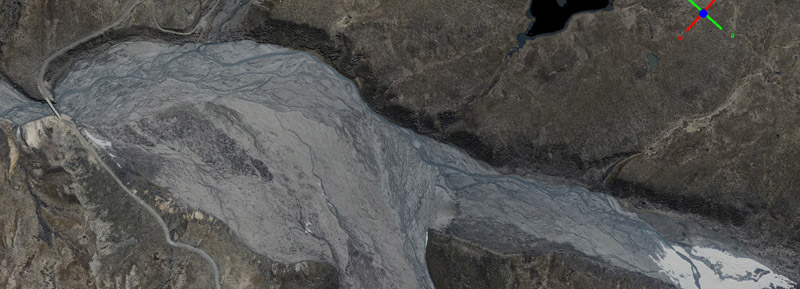

Here is a section of the Toklat River in Denali National Park in June. Mouse-over to see it in August. You can see from the images that the stream channels have changed considerably.

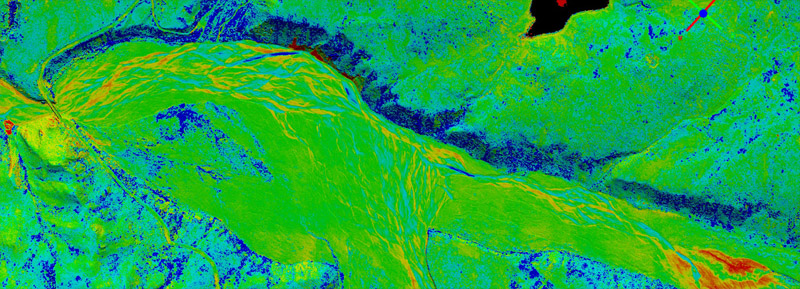

Here is the difference image between June and August. Light green means no change, yellows and reds mean the surface was higher in June and blue mean it was lower. There is a lot of both real change and water-related noise. Because the streams were shallow or dirty, both DEMs reconstructed topography that is not accurate. When differenced, this appears to show a change in elevation. While the change in elevation is real, the elevations have errors, probably on the order of tens of centimeters. Without a perfectly co-registered image that was simultaneously acquired (mouse-over to see one), it would be difficult if not impossible to distinguish changes in water level from changes in the surrounding gravel bars. Similarly, without the image, it would be difficult to distinguish snow and ice melt from gravel bar change.

Fodar™ is a form of digital photogrammetry, where the photogrammetric software is based on the Structure from Motion algorithm. Digital photogrammetry is fun and exciting, and anyone interested in doing themselves should give it a try. With both camera hardware and photogrammetric software continually getting cheaper and easier to use, nearly anyone with an interest and basic aptitude can start making digital photogrammetric maps on their own. With just the basics of a camera and handheld GPS you may already have plus software ranging from free to several hundred dollars, you should expect to be able to make maps with an accuracy of about 30 meters and and a precision of about 10 meters. With enough perseverence, you can probably make photogrammetric maps on par with Fodar™. However, doing so will require a deep understanding of photogrammetry, photography, geophysics, GPS, and flight planning, as well as a substantial investment in software and technique development -- making the leap to Fodar™ accuracy is not trivial or cheap by comparison.. But not every project requires the accuracy and precision that Fodar™ can offer, so if you have the interest in doing it yourself, give it a try!
